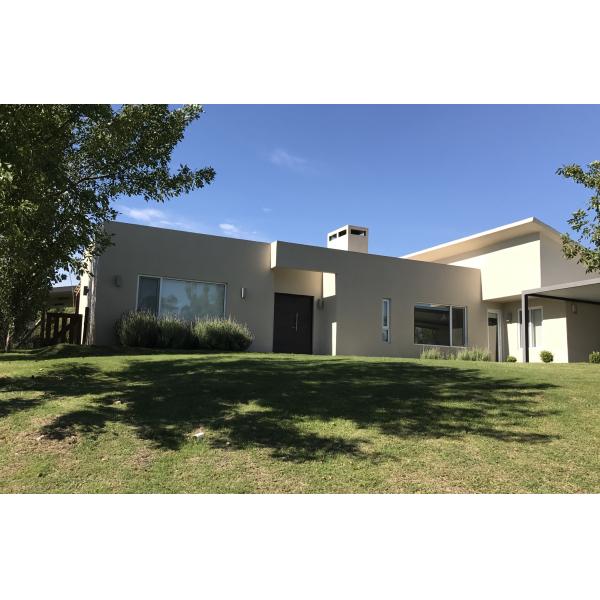

Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)

Price : Negotiation

bedroom : 4

Stories : 1

Other fittings : toilet,washbasin,shower,kitchen etc.

Life time : 100 years for structure.

bathroom : 2

Brand Name : DEEPBLUE

Model Number : DPBL-131#

Certification : AS/NZS,UL,AISI,

Place of Origin : NINGBO,CHINA

MOQ : 1 SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 12000 houses/year

Delivery Time : 30-45 days

Packaging Details : Bare bundle / 40HQ

Main structure : Light Gauge Steel

Contact Now

Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)


Quick Detail:

Name prefabricated villa Application Villa for living
Color according to customer requirements Feature

1.quickly to assemble on-site;
2.good earthquake proof;
3.green,and energy save;
material light steel and other parts material Certificate

CE,ISO,SAA,ETC

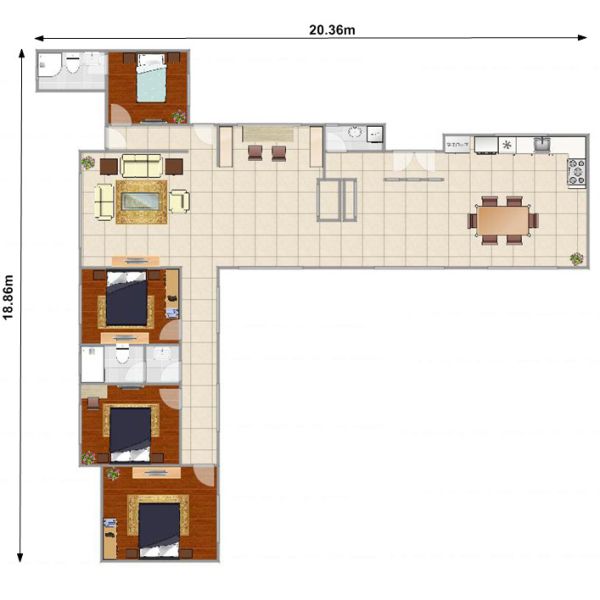

The floor plan:
Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)

MEASUREMENTS
Stories 1
Total Area 17.22sq 160㎡
　
Home Length 20.36m
Home Width 18.86m


Applications:

House, Office, Villa,etc.

Description:

Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: glass wool/EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower,kitchen etc.
Lifetime: 100 years for structure.

interior decoration chart:

Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)

Why Choose Light Gauge Steel Structure?

1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

Design Code:

1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Our Services:


If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuration.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.

Production in DeepBlue factory:

Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)Prefabricated Light Steel Villa House - Quick Assembly On Site (Uruguay)

Your first choice, Deepblue Prefabricated house in China.
